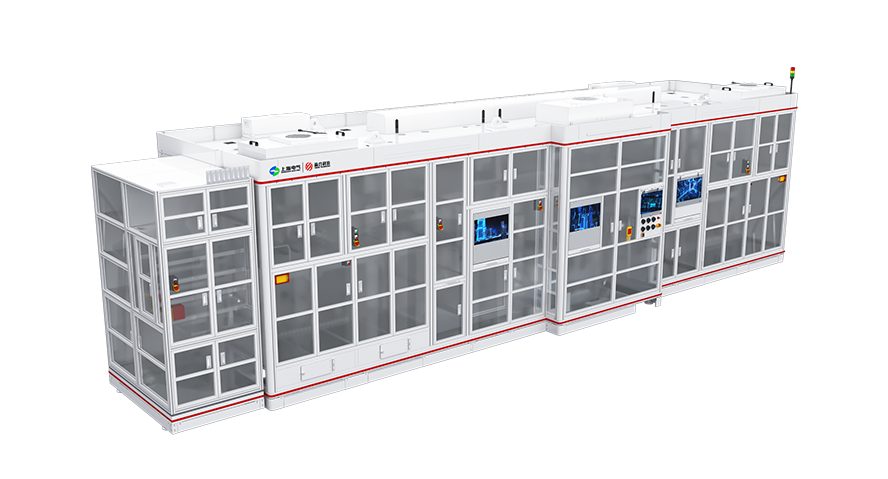

Prismatic power battery laser and winding integrated machine
Efficiency：
6ppm(Length of electrode: 16m)
Linear speed :
Max3000mm/s
This equipment integrates laser tab forming and automatic winding. Its main functions include automatic roll changing, multi-stage dust removal for electrode, laser cutting of tabs, CCD defect detection, application of protective adhesive tape to the front and end of the cathode electrode, CCD Overhang detection, round needle winding and unloading, application of terminal adhesive tape, cold pressing and shaping of the cell, Hi-pot testing, and CCD appearance inspection of the cell. With the support of advanced algorithm control, it enables closed-loop adjustment of tab spacing, segmented automatic tension control, and closed-loop alignment control of the winding process.
Equipment parameters:
Equipment Parameters
Equipment model | YWPB300K | Cell diagram |
|---|---|---|
Compatibility range | H：60-280mm；；；； ； W：80-320mm T：10-40mm；；；； ； TH≤40mm |  |
Tab misalignment(mm) | ≤±5 | |
Tension fluctuation | ＜±3% | |
Laser cutting burrs(μm) | ＜10 | |
Efficiency | 6ppm (Length of electrode: 16m) | |
| Qualification rate | ≥99.5% |
Related Products
-
High-speed HEV fully automatic winding machine
This equipment is mainly used for fully automatic winding of low-capacity battery. It features online overhang detection and closed-loop control. After cold pressing for pre-shaping and Hi-pot (high voltage) test, the discharging is completed through the conveyor.
-
3C electrode-making integrated machine
This equipment is suitable for the fully automated winding of prismatic 3C lithium-ion batteries. It features CCD online detection of various data and closed-loop control. After the cell flattening and Hi-pot testing, the cells are unloaded from a conveyor belt.
-

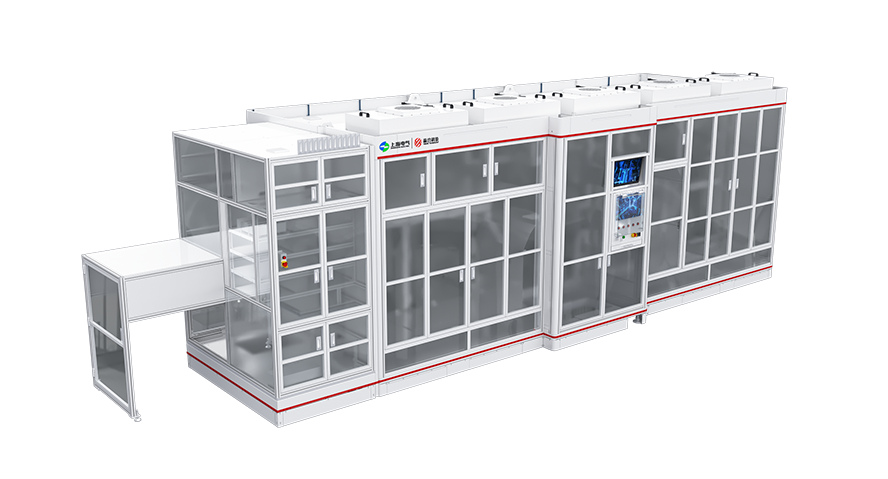

Prismatic power battery winding machine
The equipment is mainly used for the fully automated winding of power batteries, with online overhang detection and closed-loop control. After cold pressing, pre-shaping, and Hi-pot testing, the material is unloaded via a conveyor belt.
